(2) Pack 2-Way Split Effects Pedal DC Power Cables for VooDoo Labs Power Supply

(2) Pack 2-Way Split Effects Pedal DC Power Cables for VooDoo Labs Power Supply

$9.99 USD
$9.99 USD
Sale Sold out

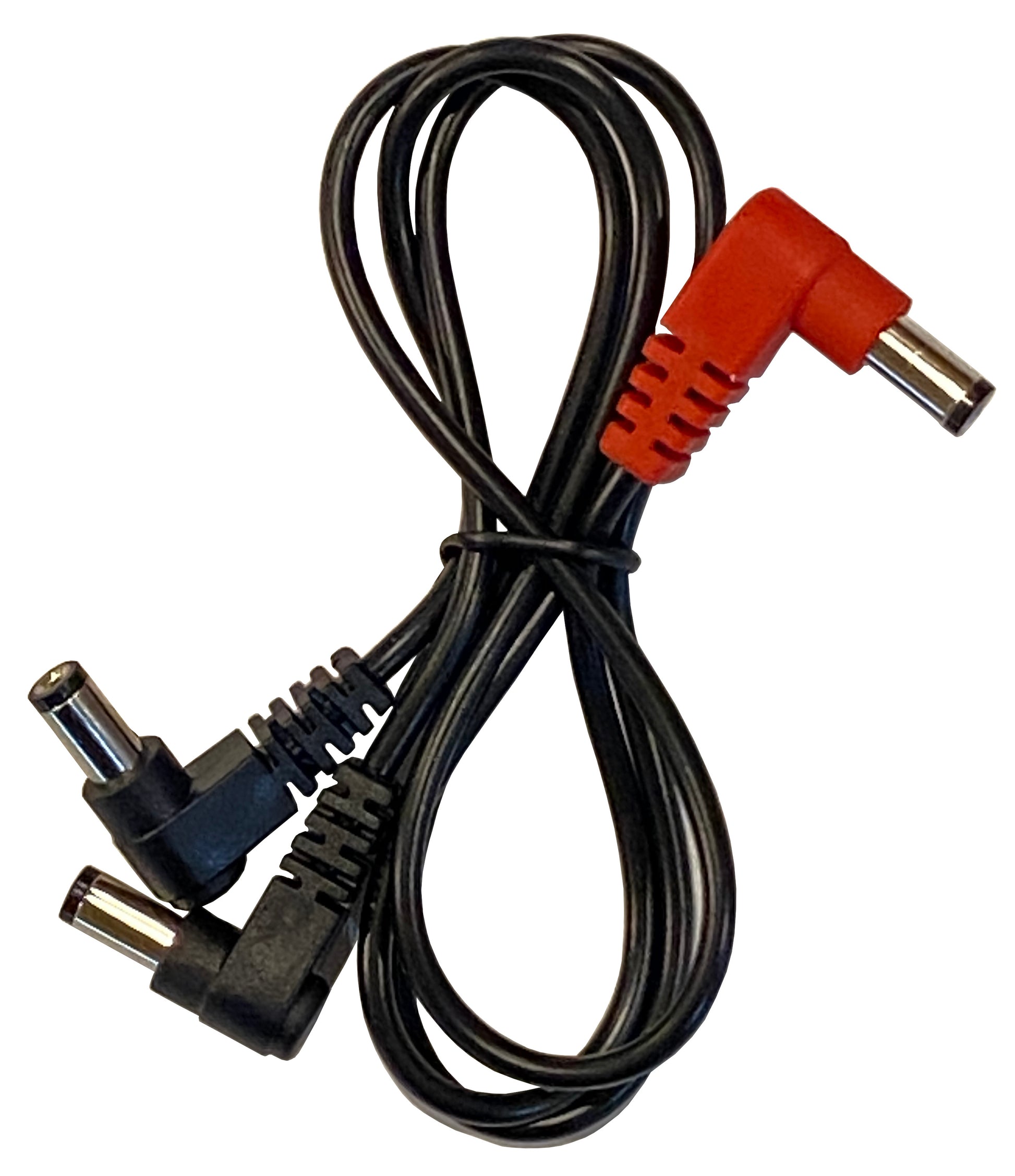

(2) Pack of 2-Way Split Daisy Chain Effects Pedal DC Power Cables for VOODOO Power Supplies

This is a pack of (2) Kurrent Electric Brand cables for use with VOODOO Power Supplies. These may not work with other types of power supplies. These fit typical boss style pedals DC barrel power inputs.

CAUTION: The RED connector goes to the power supply while the BLACK connectors go to the pedals.  This is important to get set up correctly to ensure the correct polarity for your pedals.  Failing to do so may result in possible damage to pedals.

These work great for powering multiple pedals using a single outlet on your power supply.  Make sure the current draw from your pedals doesn't exceed the current available from your power supply's output. You'll need to add up the current draw from each pedal (see manufacturers website or manual for the specifications)  to see what the total current draw will be.  For example if you have two pedals each having a draw of 150mA your power supply's outlet will need to be able to provide at least 300mA or more.  Also some pedals don't like to share an outlet and will be noisy.  If you're experiencing noise you may need to move one of the pedals to it's own outlet.

If you're not sure if this cable will work with your power supply or the pedals you'll be using it with please message us.  We'll do our best to help find the cables you need.

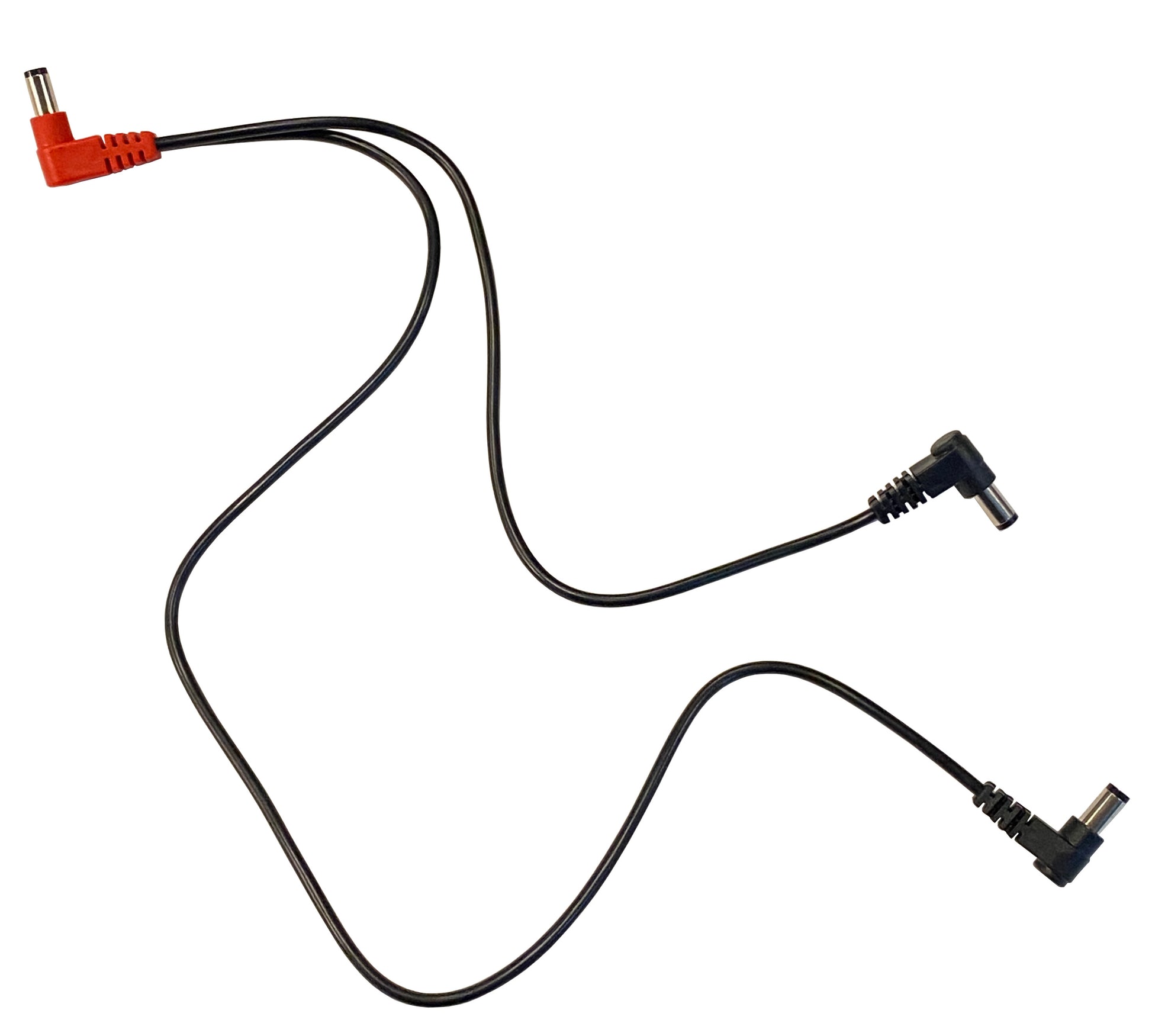

  • 9.5" length of flexible cable between the RED plug and to one of the BLACK DC Barrel Plugs.  The length of flexible cable between the RED plug and the other BLACK DC Plug is about 17.5" inches.  The overall length tip to tip of the entire cable is about 20" inches
  • 5.5mm x 2.1mm DC Barrel Plugs
  • Durable outer jacket with compact molds for fitting in tight spaces.
  • Right angle to standard plugs

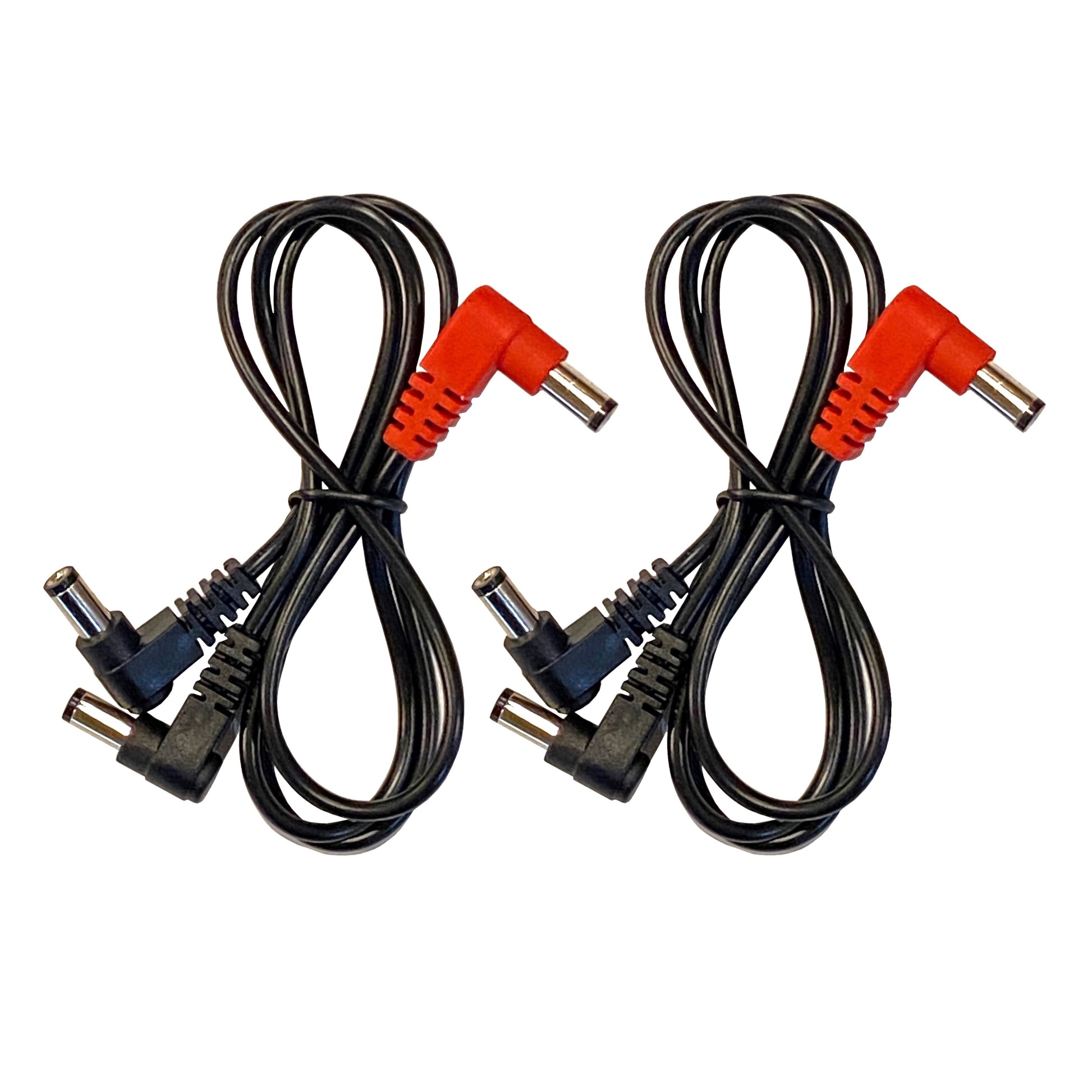

  • Qty (2) Cables
We do our best to ship orders daily Monday - Friday & Saturday mornings.
